4-in-1 Multi-Port Battery Charger for Yuneec Typhoon Q500 H480 & 7500mAh LiPo Drone Battery

$81.99
Size
Details

4-IN-1 MULTI PORT FAST BATTERY CHARGER & POWER ADAPTER

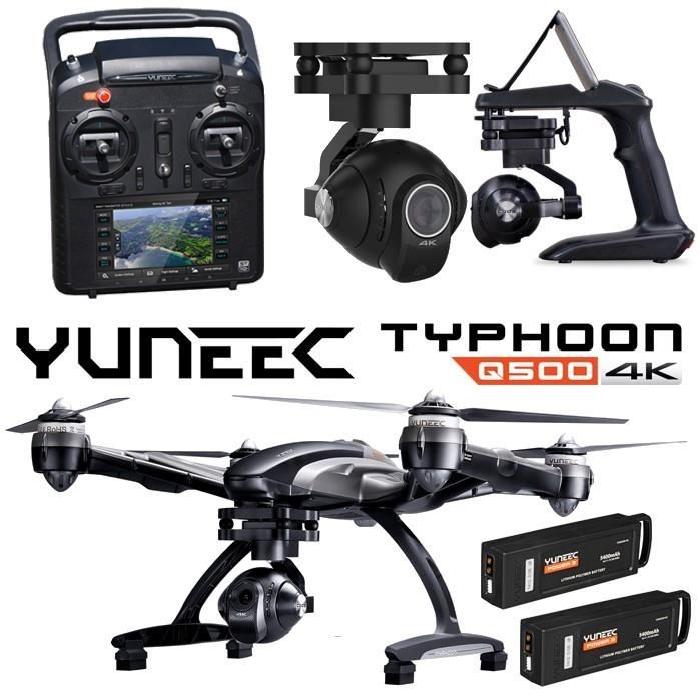

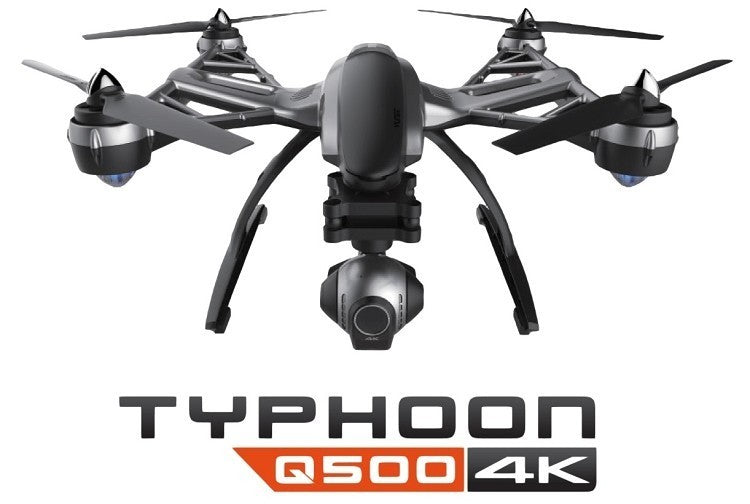

Simultaneously charge up to four (4) batteries, including the GiFi Power 6400mah and 7500mah, the Yuneec Q500 original, and other aftermarket Yuneec Q500 Battery. Combo packs include replacement battery for YUNEEC Typhoon Q500, Q500+, Q500 4K, Typhoon G quadcopters and Q500 Drone.


For your safety, only use a balance charger to safely recharge your LiPo Lithium batteries



Available packs:

  • GIFI POWER 4-IN-1 Multi Port Charger ONLY (no batteries included)

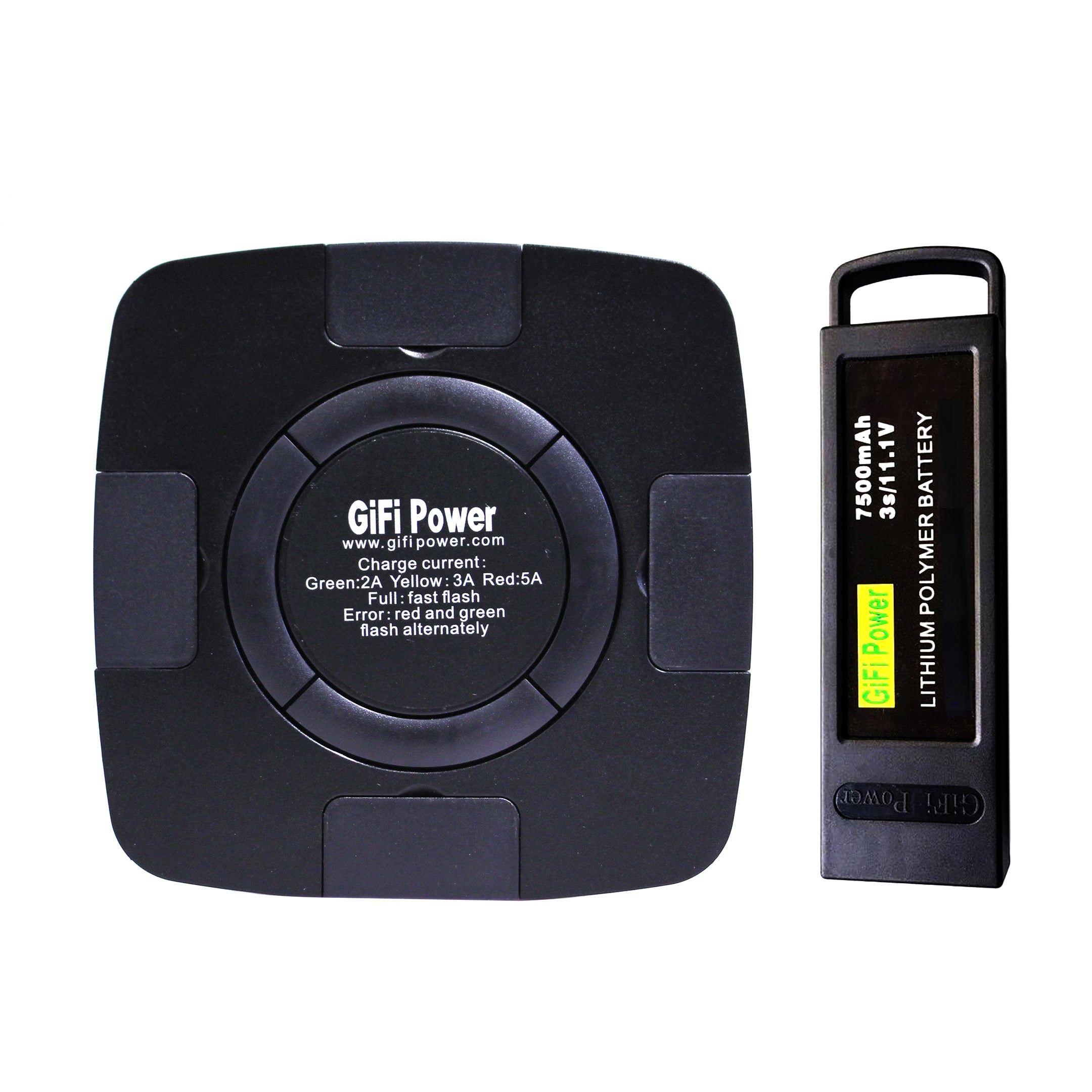

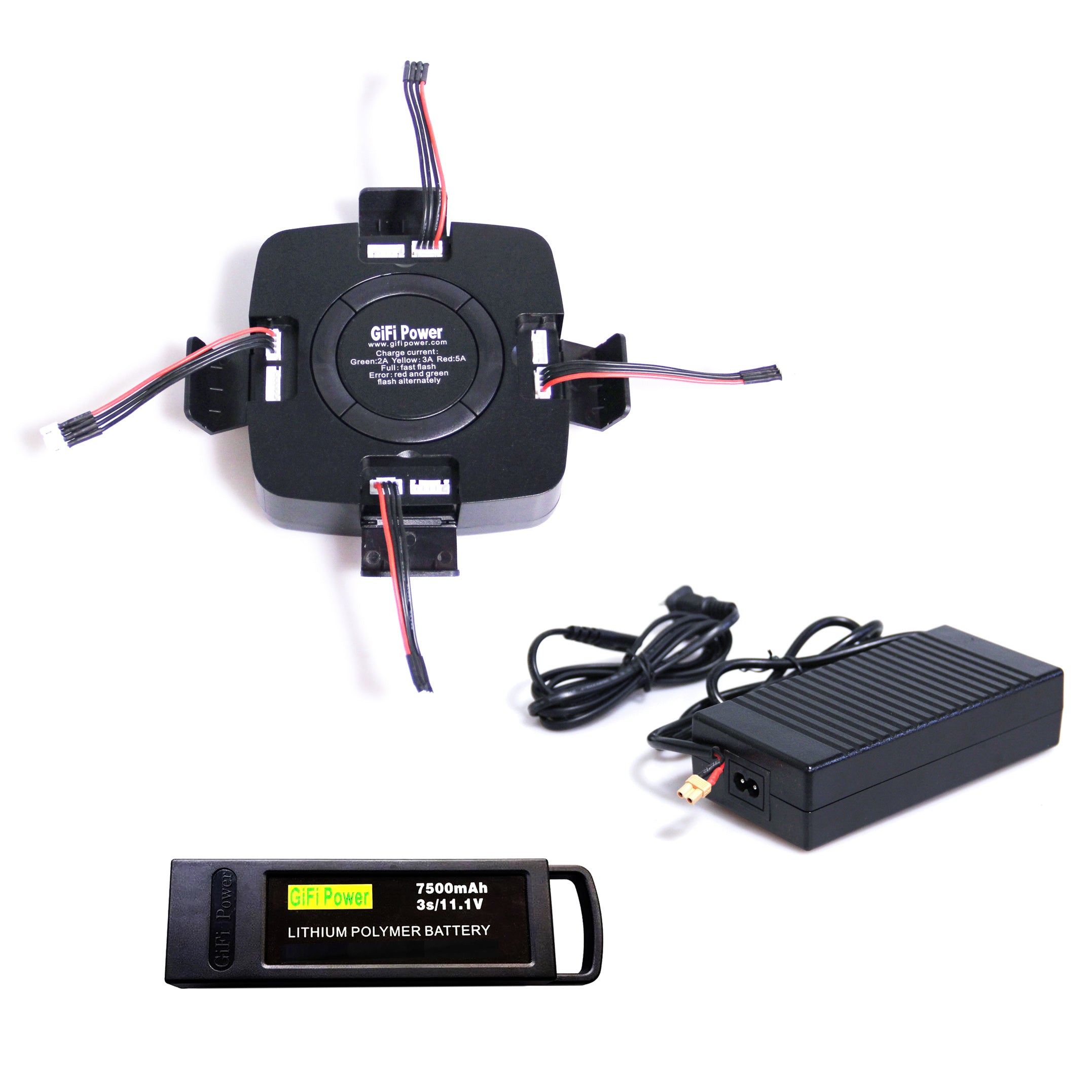

  • GIFI POWER 4-IN-1 Multi Port Charger + 7500 mAh LiPo Battery (1 pc)

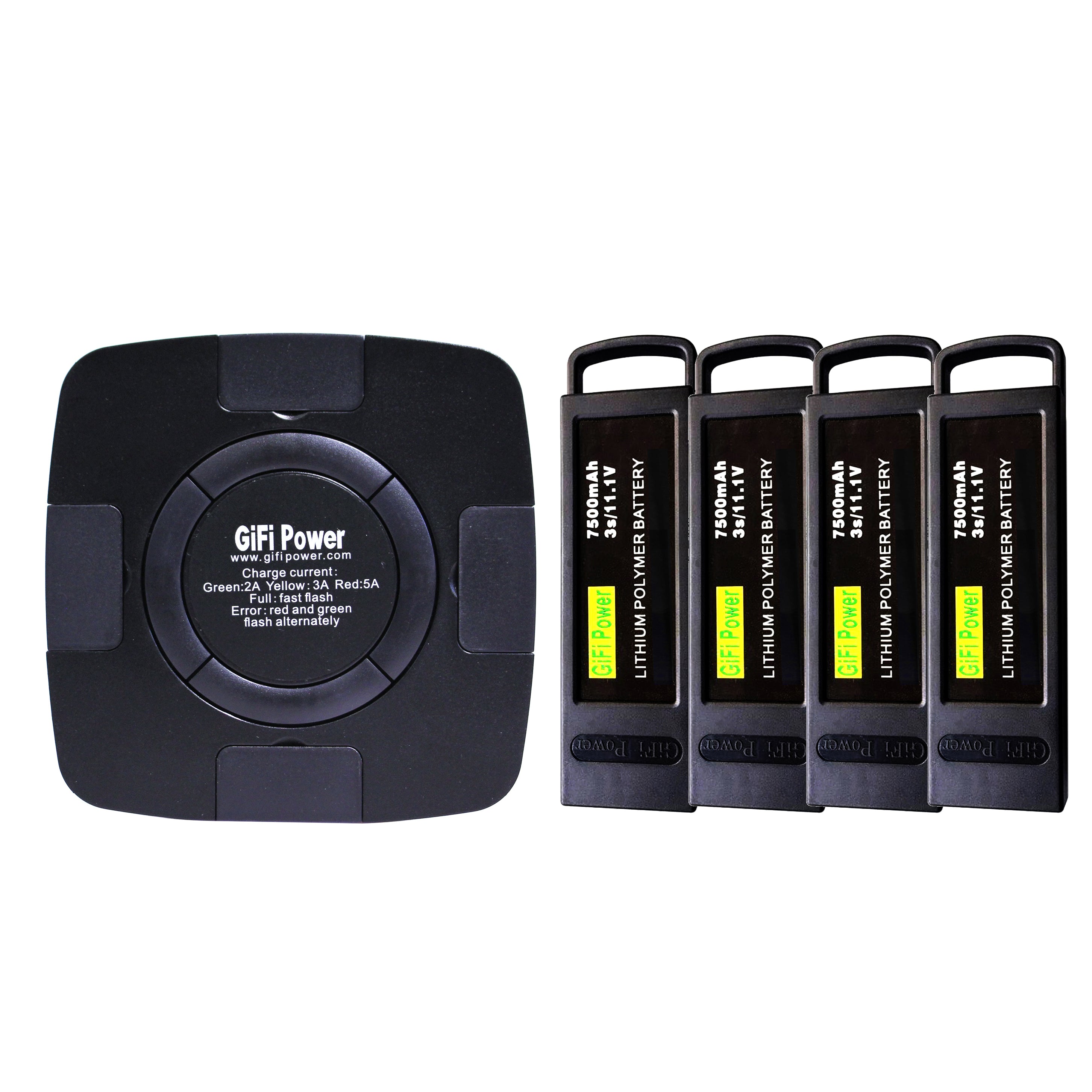

  • GIFI POWER 4-IN-1 Multi Port Charger + 7500 mAh LiPo Battery (4 pcs)
Features

Charger Features:

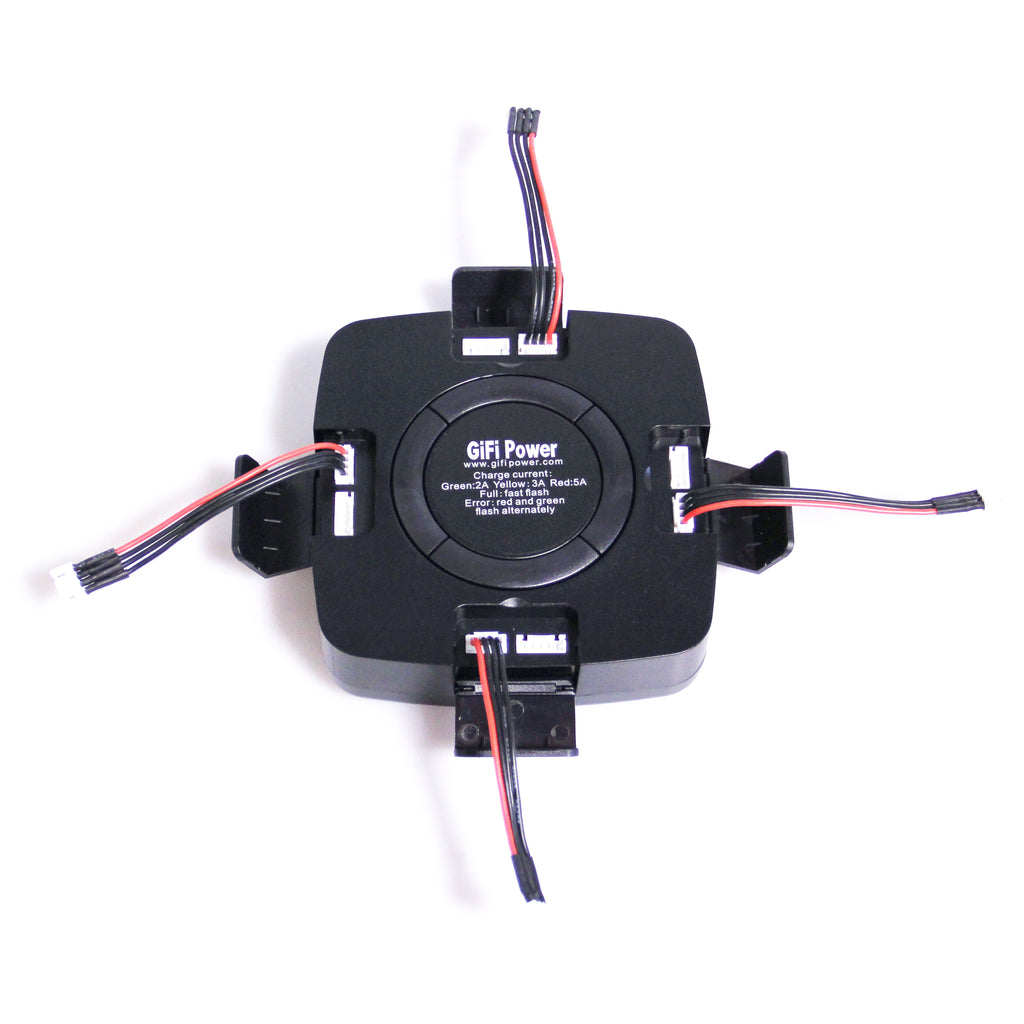

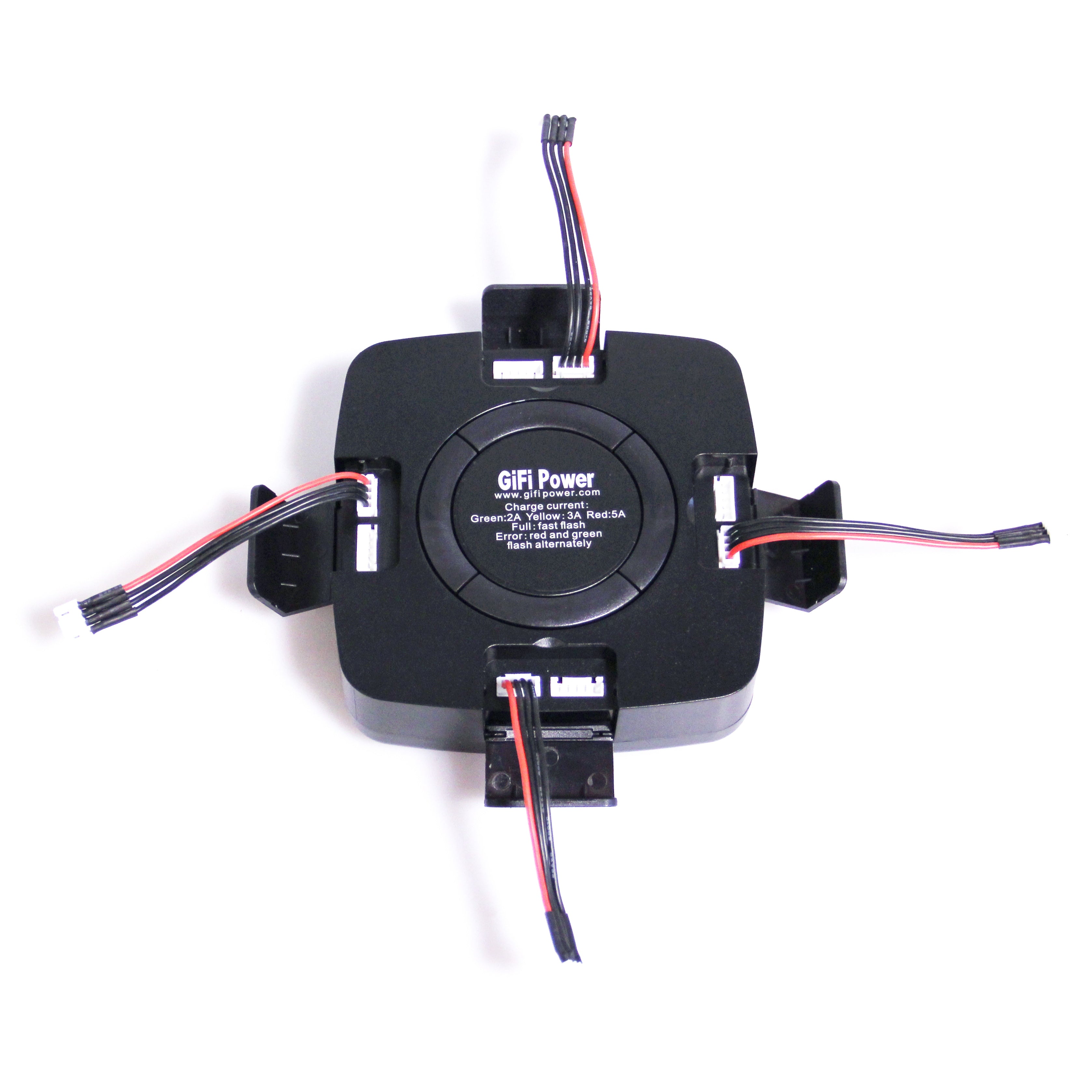

Rapid multi-battery charger unit with 4 independent outputs

Charge 4 batteries at the same time

Support charge for GiFi 6400 and 7500 mah batteries, Yuneec Q500 original and other aftermarket batteries.
Charging current adjustable to ranges 2A, 3A, and 5A at maximum.

Supports 3-4 cells, 11.1V and 14.8V Lithium Polymer (LiPO) Battery

Short circuit, over-current and over-temperature protection. Safe and reliable.

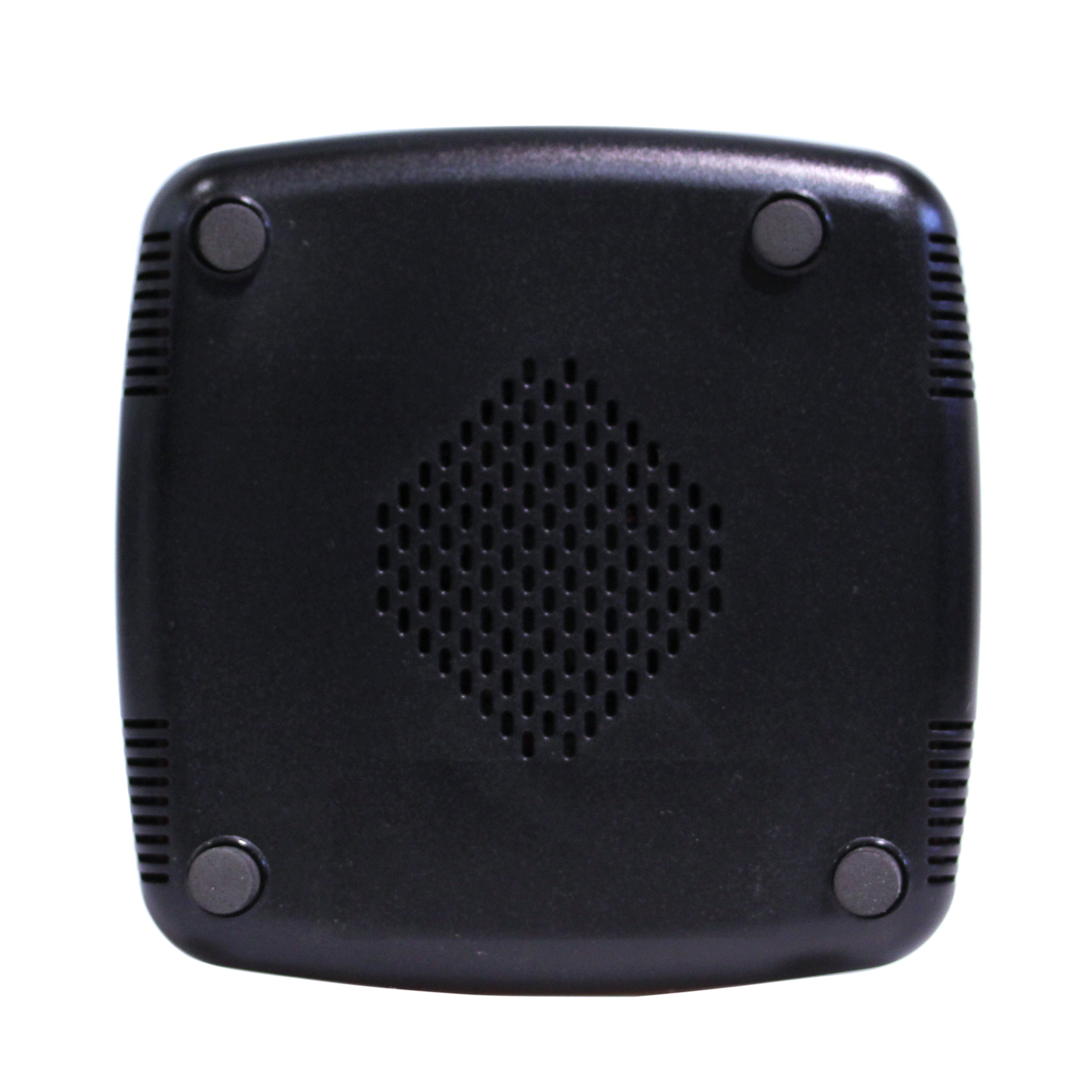

With built-in cooling fan, housing made of PC flame retardant material

Plug-and-play function. No intricate assembly required.

Battery Features:

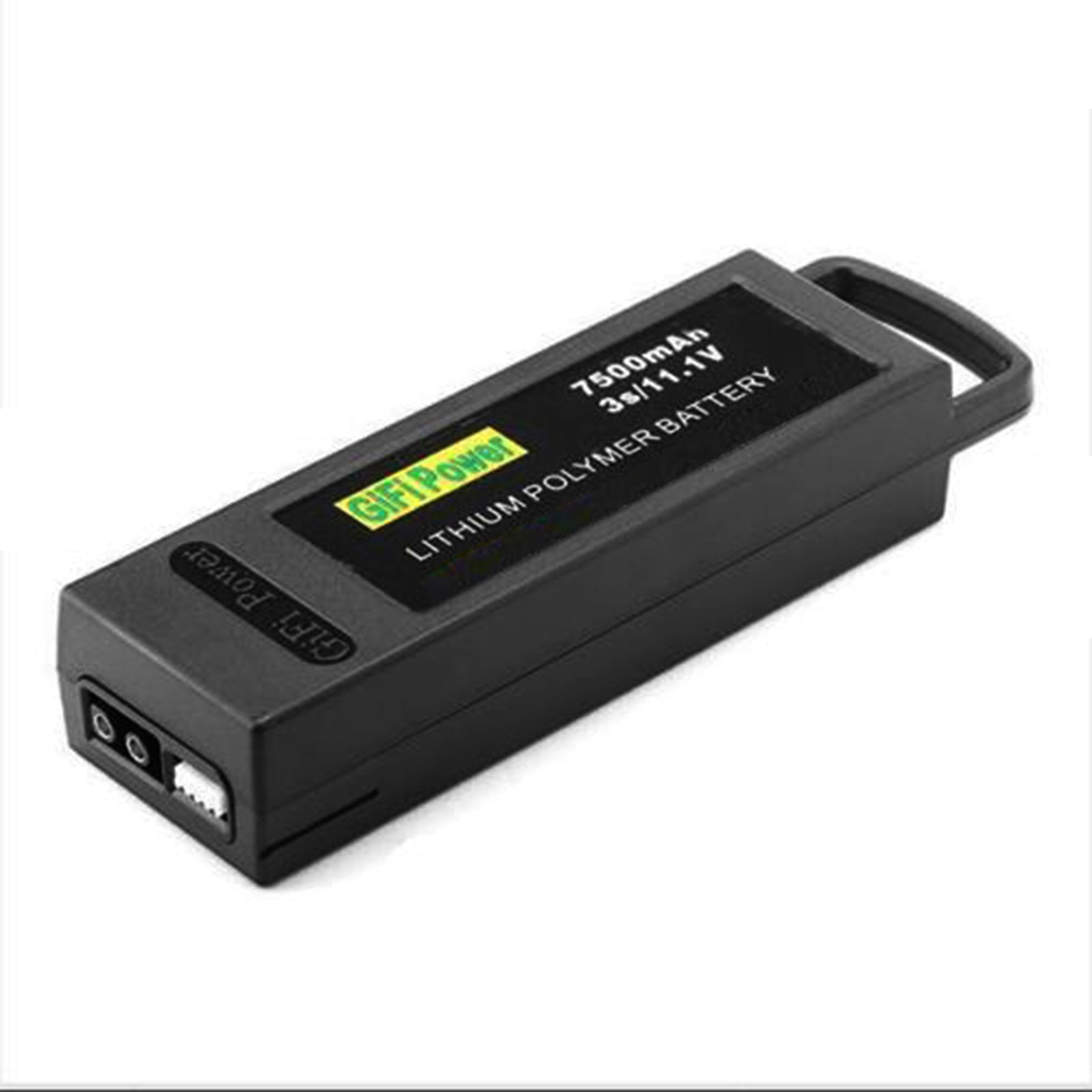

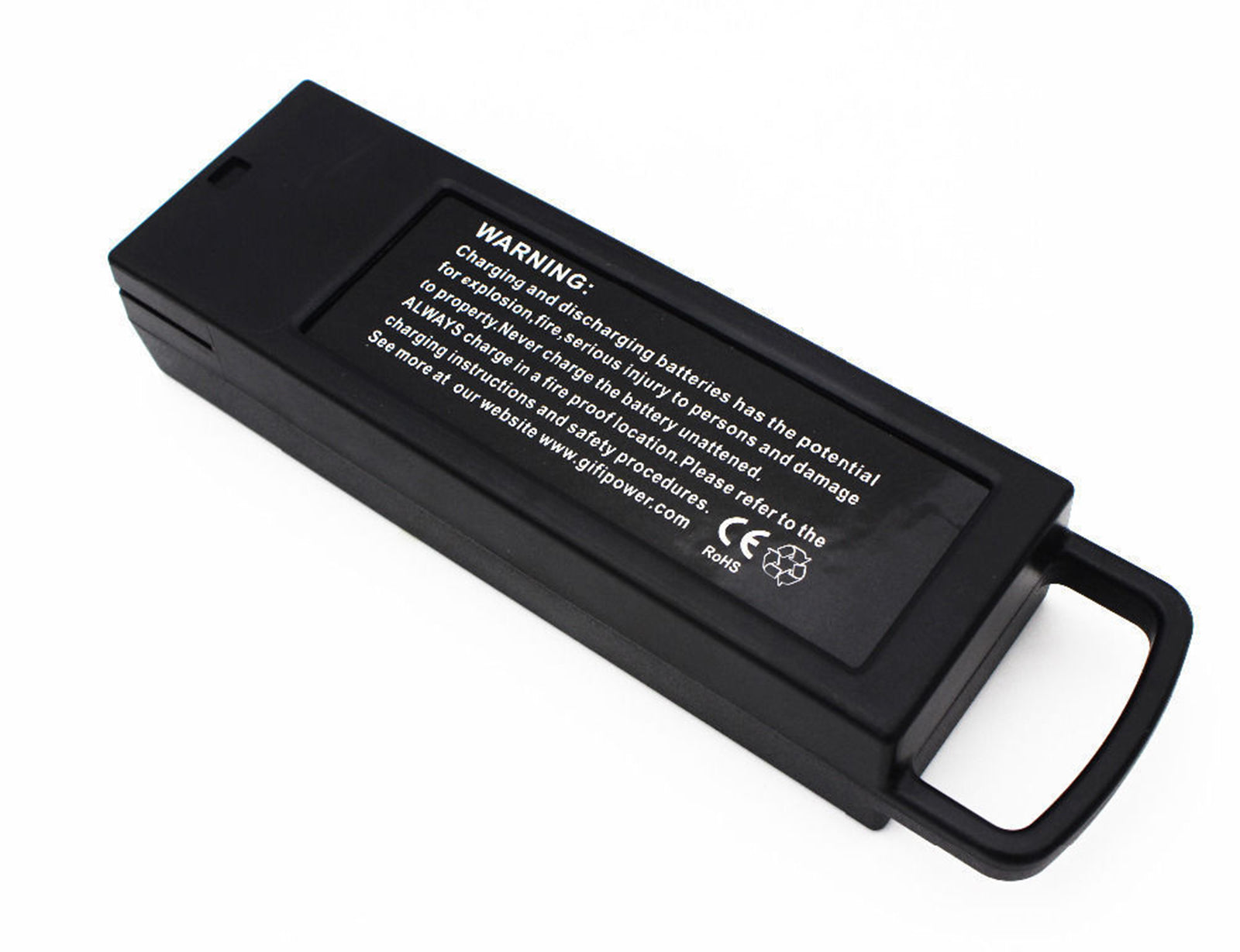

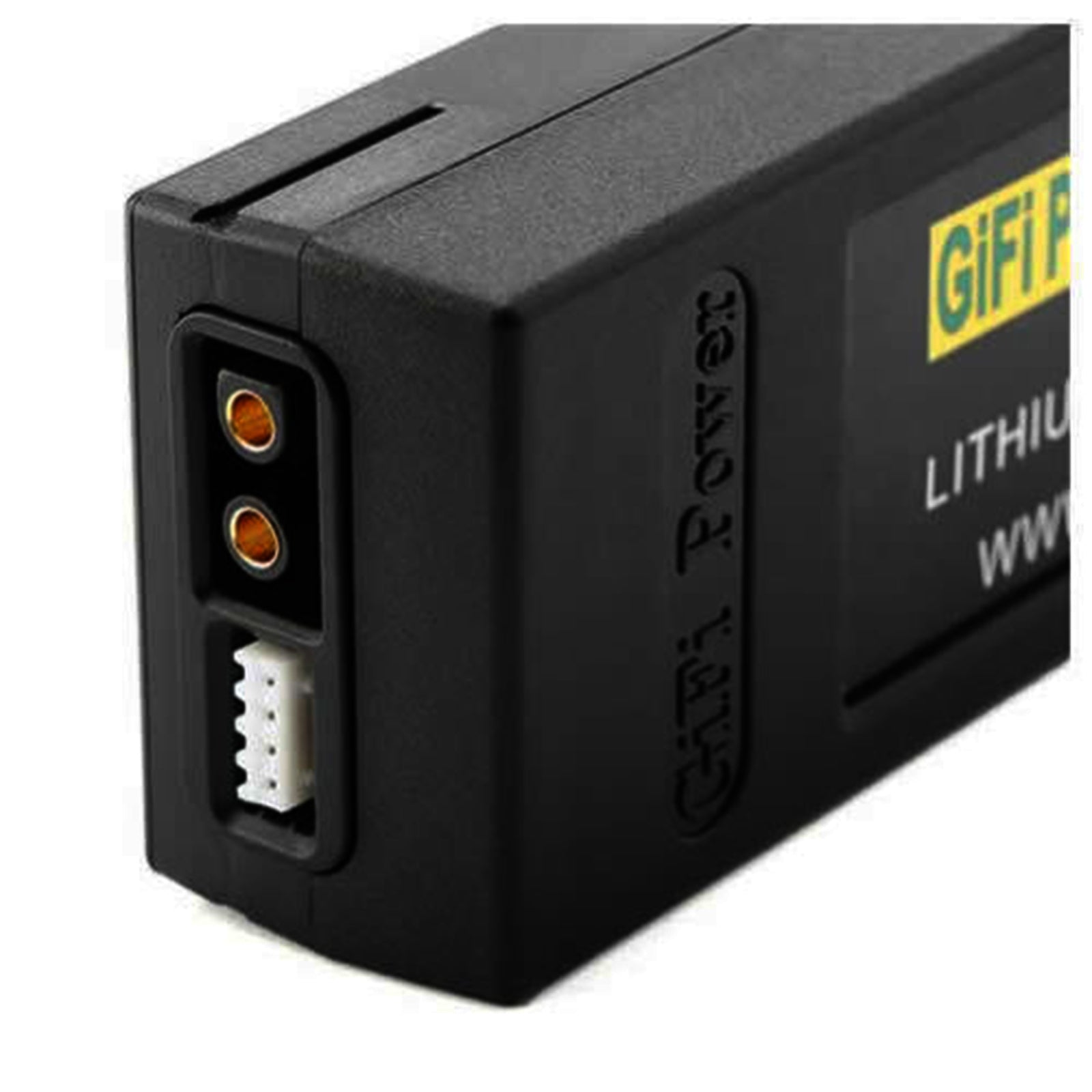

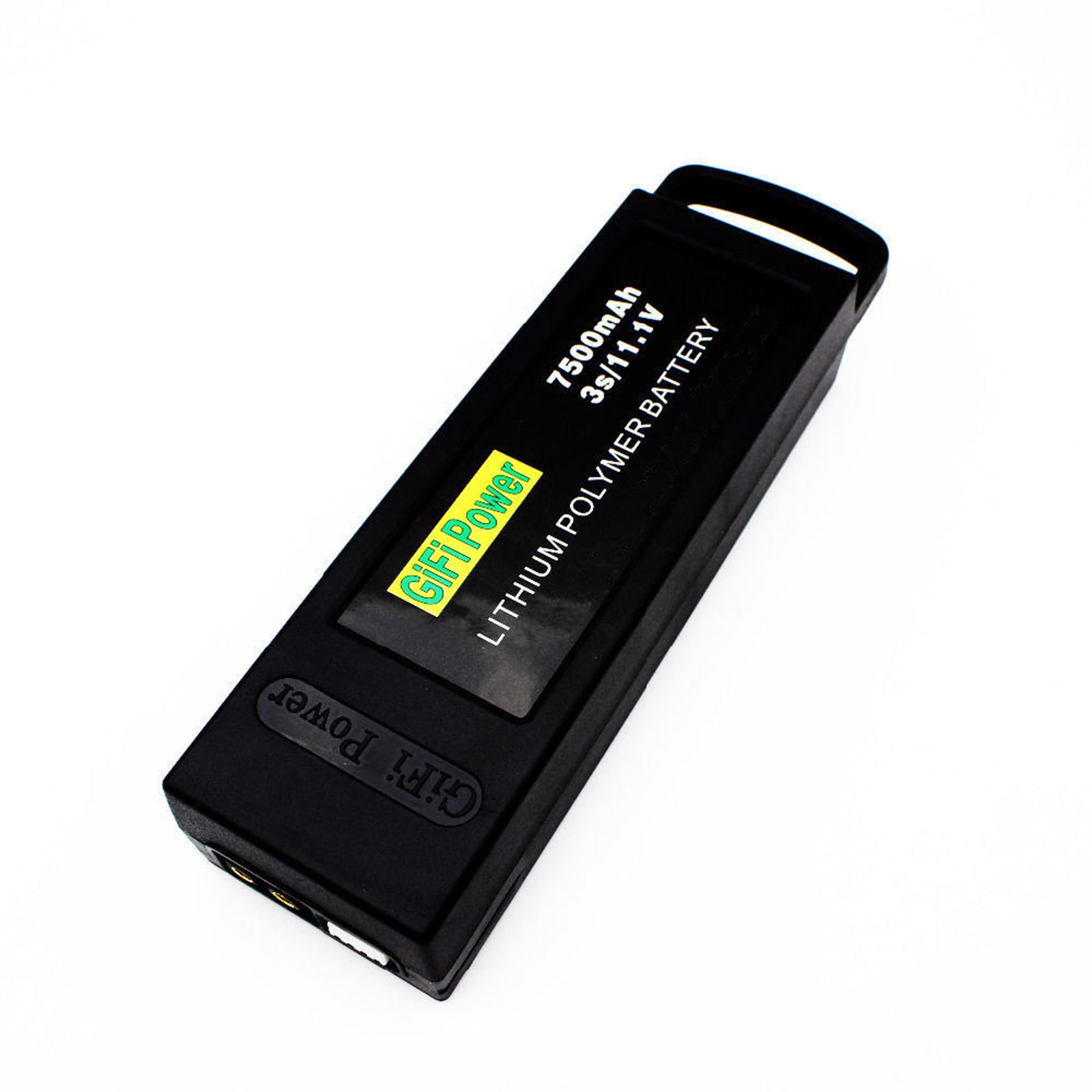

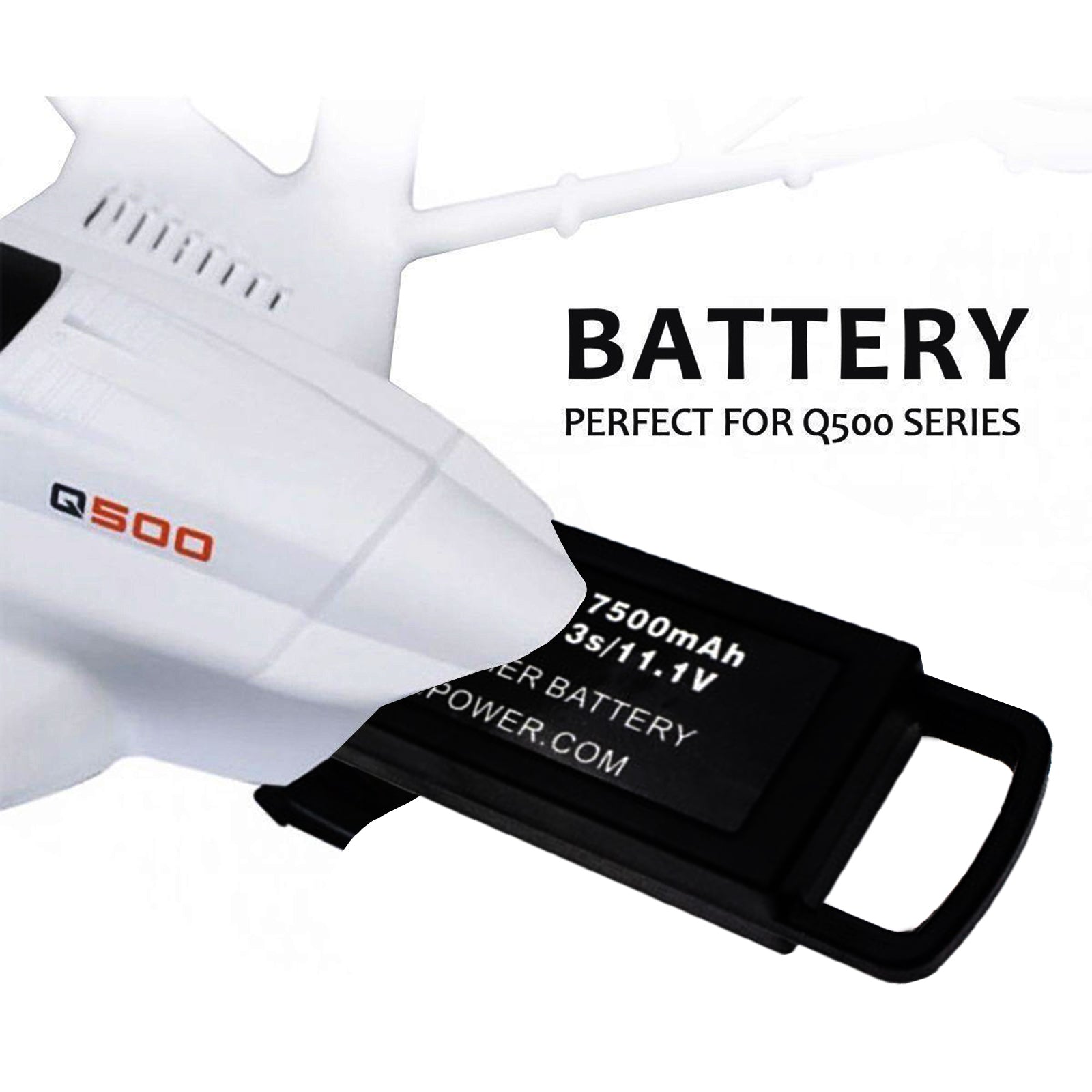

Replacement LiPo Battery for YUNEEC Typhoon Q500, Q500+, Q500 4K, Typhoon G quadcopters and Q500 Drone (7500mAh 3S LiPo Battery)

Support charge for GiFi 6400 and 7500 mah batteries, Yuneec Q500 original and other aftermarket batteries; NOT ALL chargers are compatible with this battery. DO NOT use smart chargers that are designed to charge NiMH or NiCd batteries with this product

Charging current adjustable to ranges 2A, 3A, and 5A at maximum. Supports 3-4 cells, 11.1V and 14.8V Lithium Polymer (LiPO) Battery

Short circuit, over-current and over-temperature protection. Housing made of PC flame retardant material. Safe and reliable.

With built-in cooling fan and Plug-and-play system; make sure to fully charge the battery before using for drone flights to enjoy the full flight power

Product Care

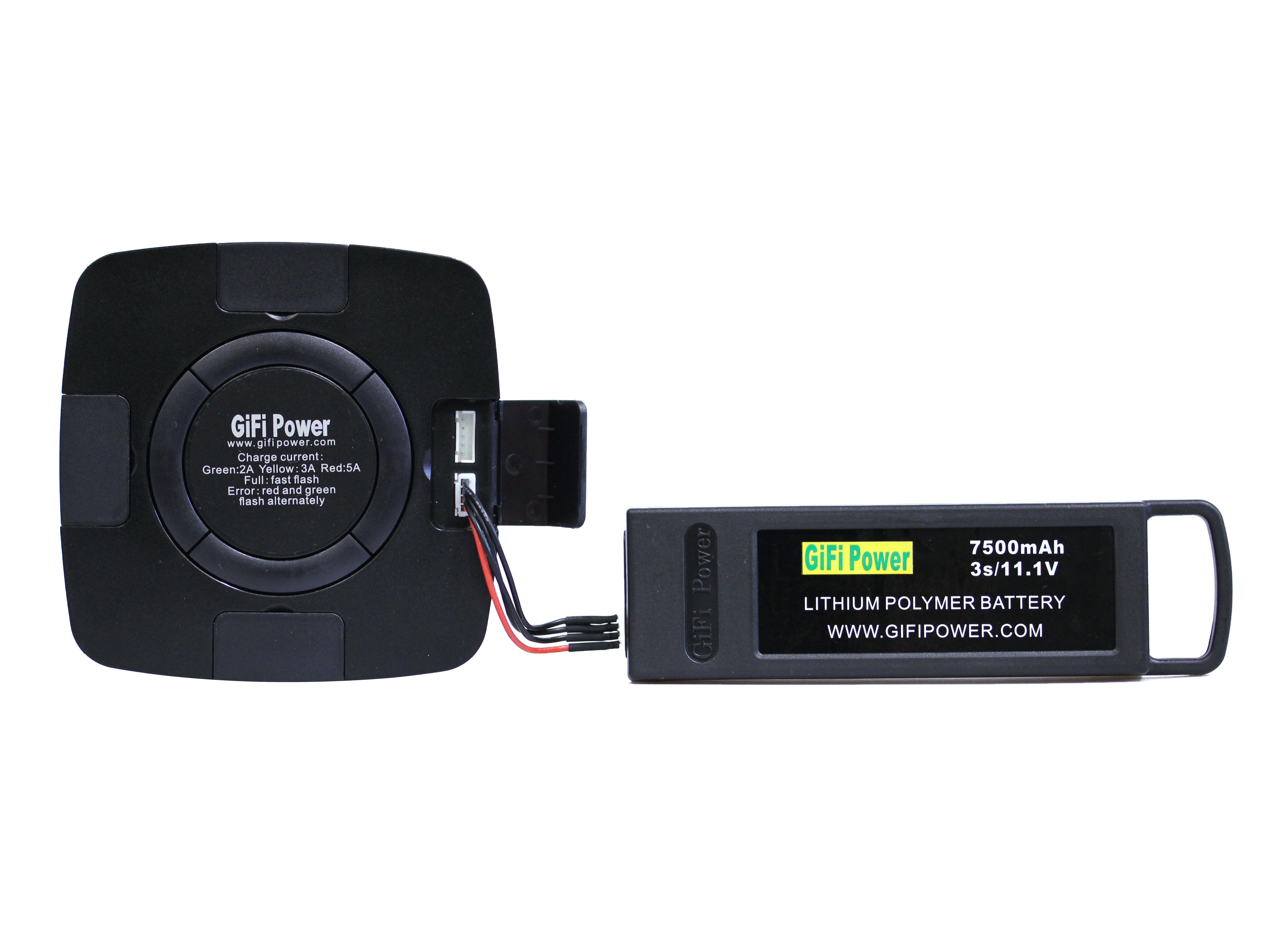

How to Charge:

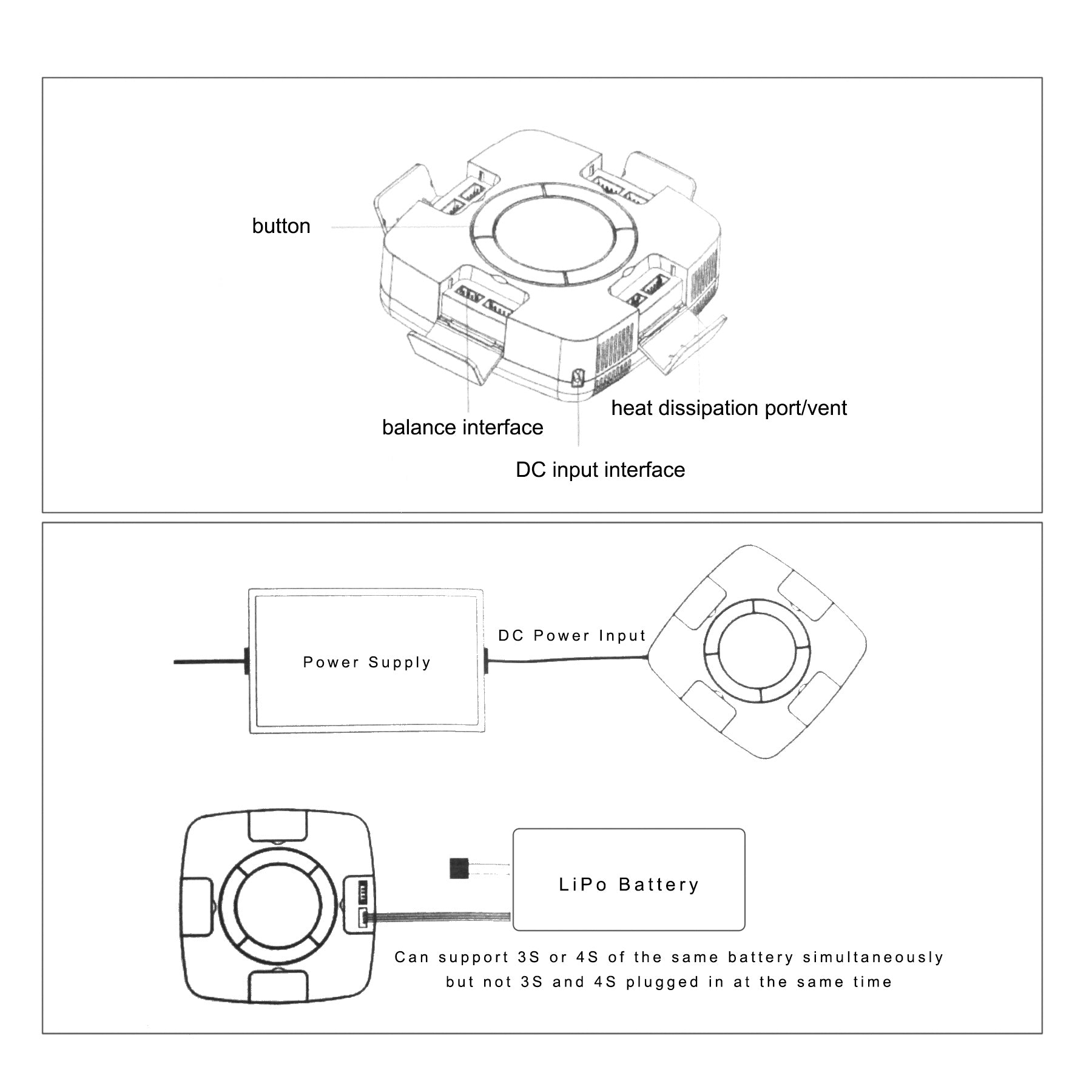

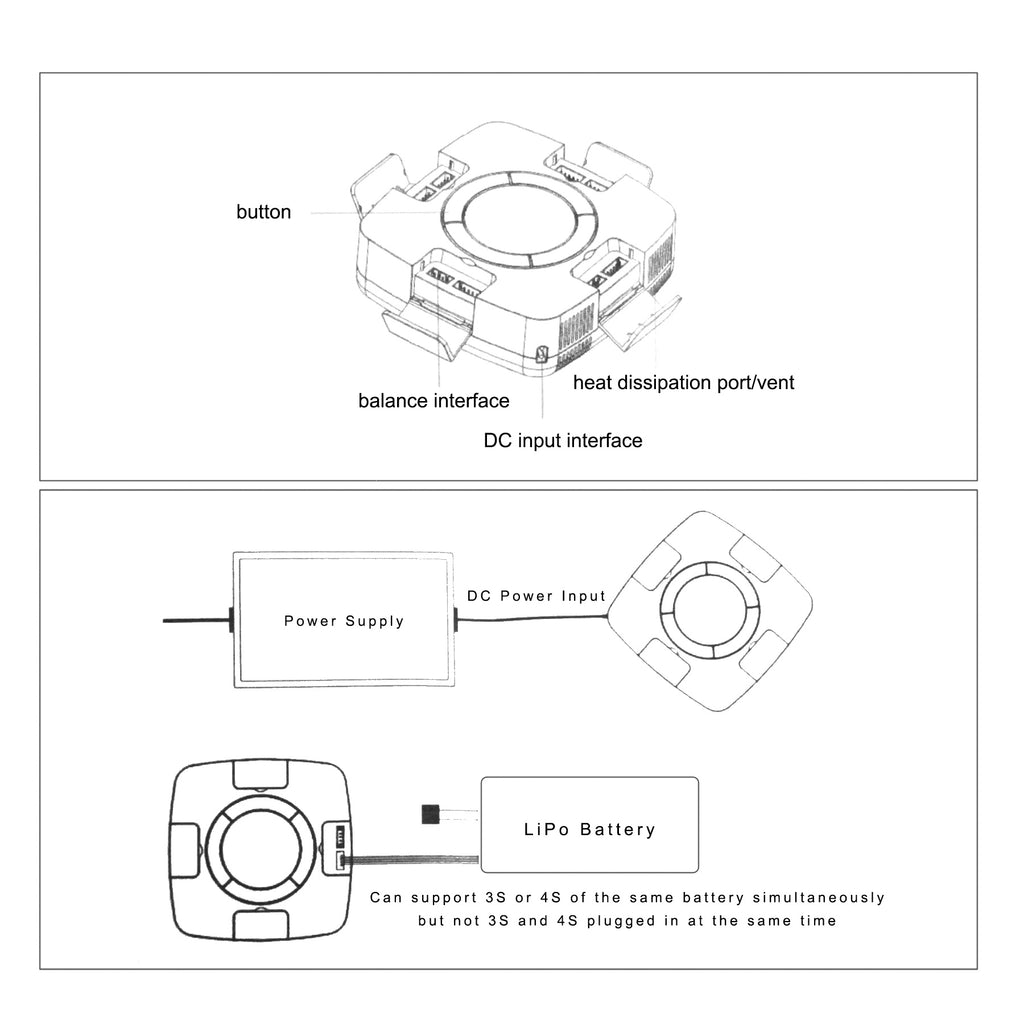

GP4 Intelligent Fast Charger Manual

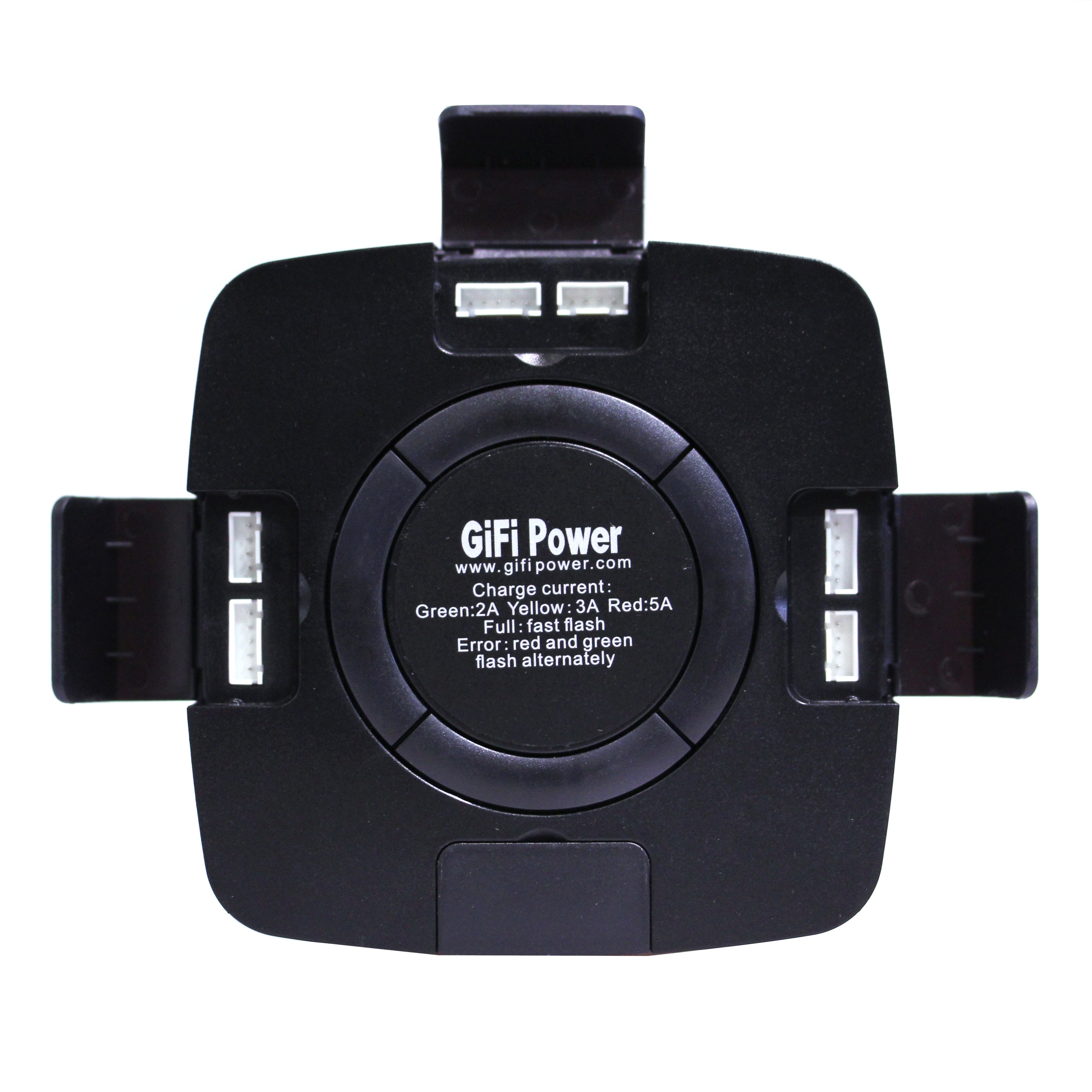

Set charge current: Press the button
Start charging: Press button for 3 seconds.

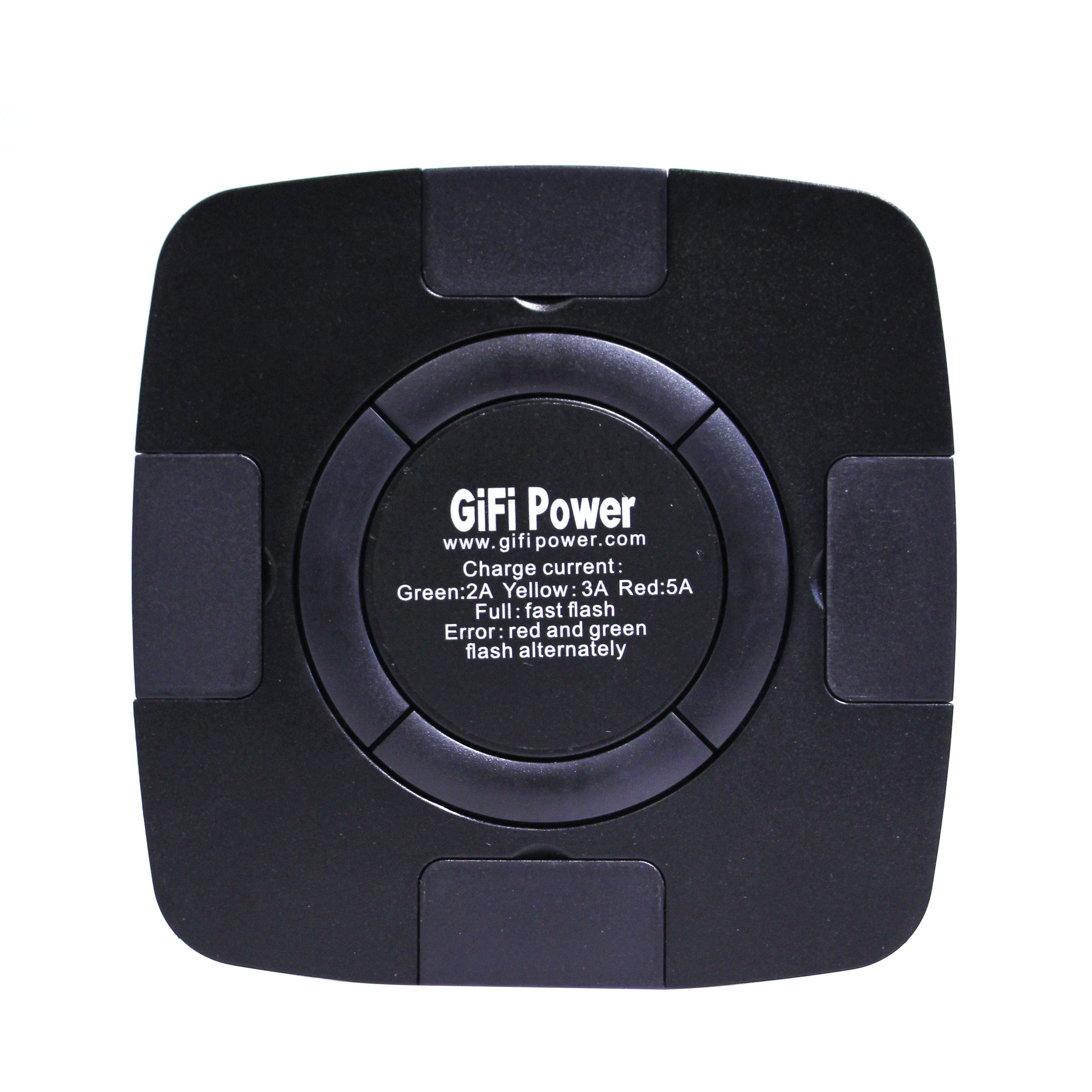

Green: 2A, Yellow: 3A, Red: 5A
Ready to Charge: Shows Four Green Lights
Charging: Shows LED Slow Flashing
Full: Shows LED Fast Flashing
End: Press the button until LED Light Flash turns off.
If ERROR occurs: Red and Green Light will Flash alternately
Approximate charging times:
To fully charge a battery, it will take about 50 minutes for an 4A output.
2 batteries will about 85 minutes. 4 batteries will take about 200 minutes.

Product Care Info:

Don’t Run The Battery All the Way Down - Never deep drain a LiPo battery, as it can damage the poles and reduce life; instead, recharge when energy starts to slow down. Unless you have NiCd battery exhibiting the memory effect, avoid deep draining.

Don’t Leave Battery on Charger - Remove battery after charging finishes; overcharging can damage it and shorten life. Not all chargers auto-shutoff.

Don’t Let Battery Overheat - Heat is deadly for LiPos as it may cause them to explode; if hot, let cool before charging/using.

Do Keep Battery Charged - Recharge cordless batteries as soon as you notice a decrease in power.

Do Use Battery Regularly - Use batteries regularly; else, opt for a plug-in version.

Do Charge Battery Completely: Be sure to leave the battery plugged in until it’s completely charged.

Do Store Battery Properly: Store battery in original case or cushioned bag in cool, dry place away from sun, heat, or humidity. Use plastic cap to prevent short-circuiting and protect terminals from breakage and moisture.


NOTE:
Please make sure your battery has a balanced charge across all the cells inside the battery before every flight. You can do this by using the "cell balancing" feature on your charger before giving it a full charge.

DO NOT USE smart chargers that are designed to charged NiMH or NiCd batteries with this product.

DO NOT USE Venom charger to charge this battery

Specifications

Charger Specifications:

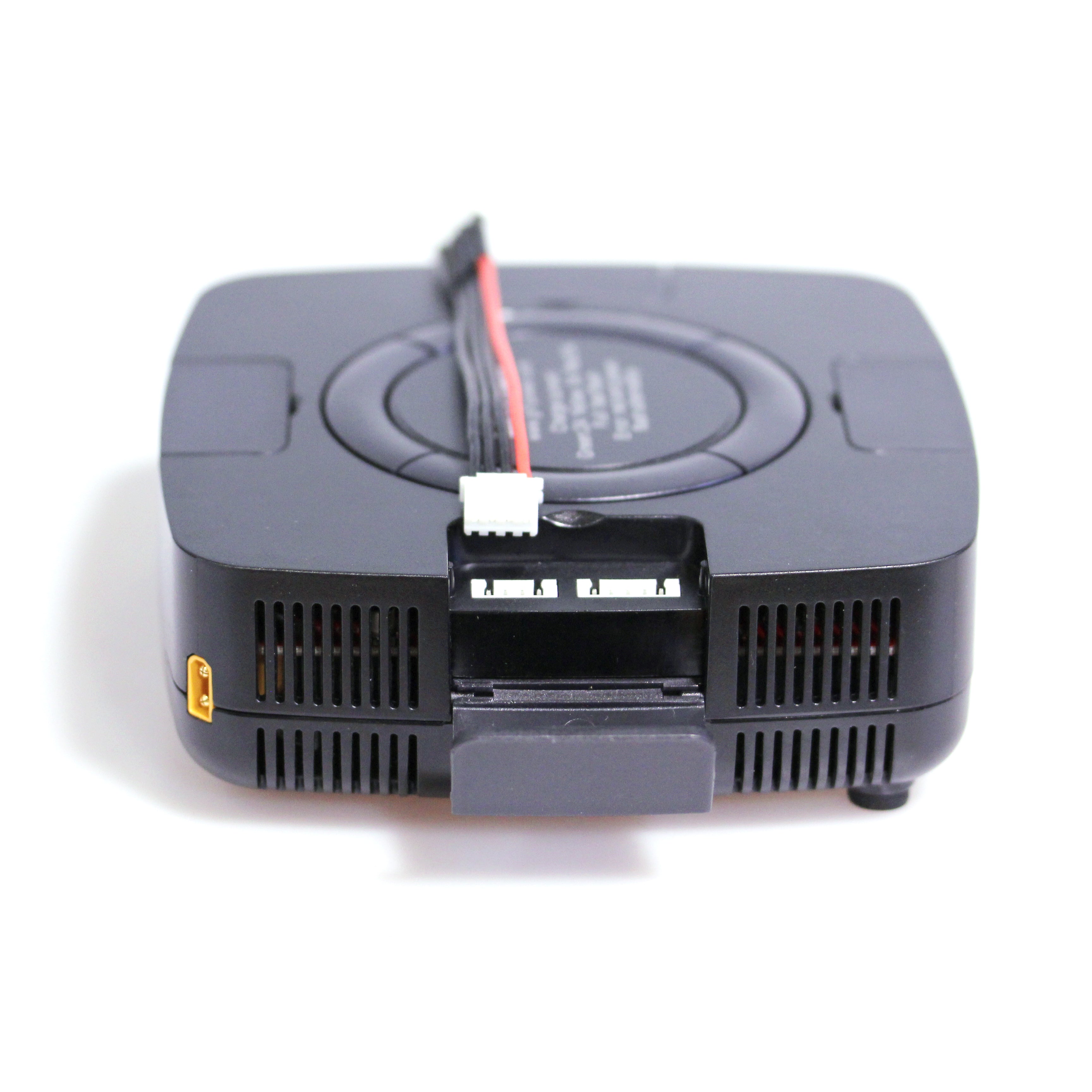

4 in 1 Battery Charger Unit

Material: ABS
Color: Black
Item size: 5 x 5 x 1.75"
Box Size: 6.25 x 6.25 x 2.25"
Item weight: 10 OZ
Shipping Weight: 12 oz

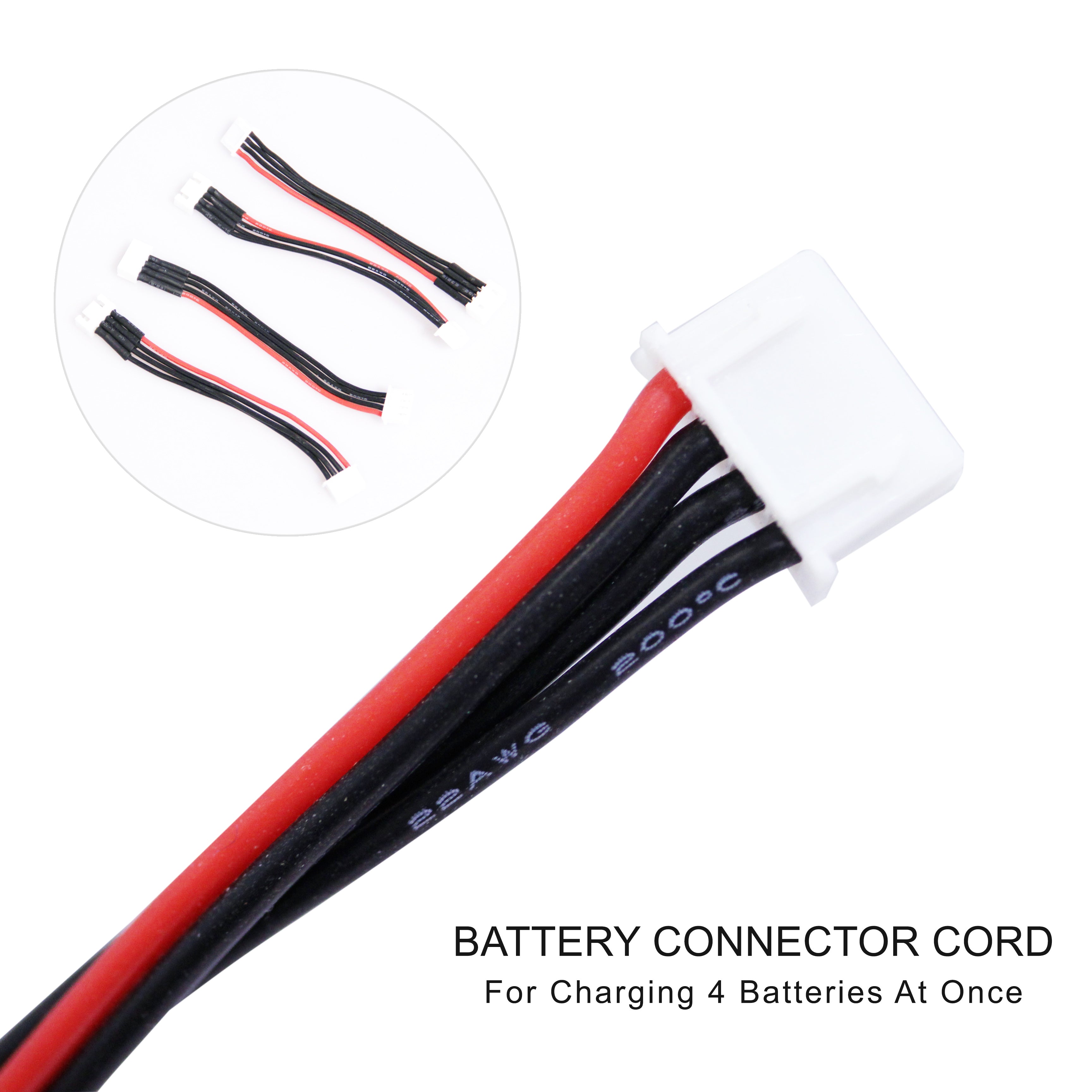

Connector Cable

Item Size: 4.5 x 0.5"
Item Weight: 0.1 oz

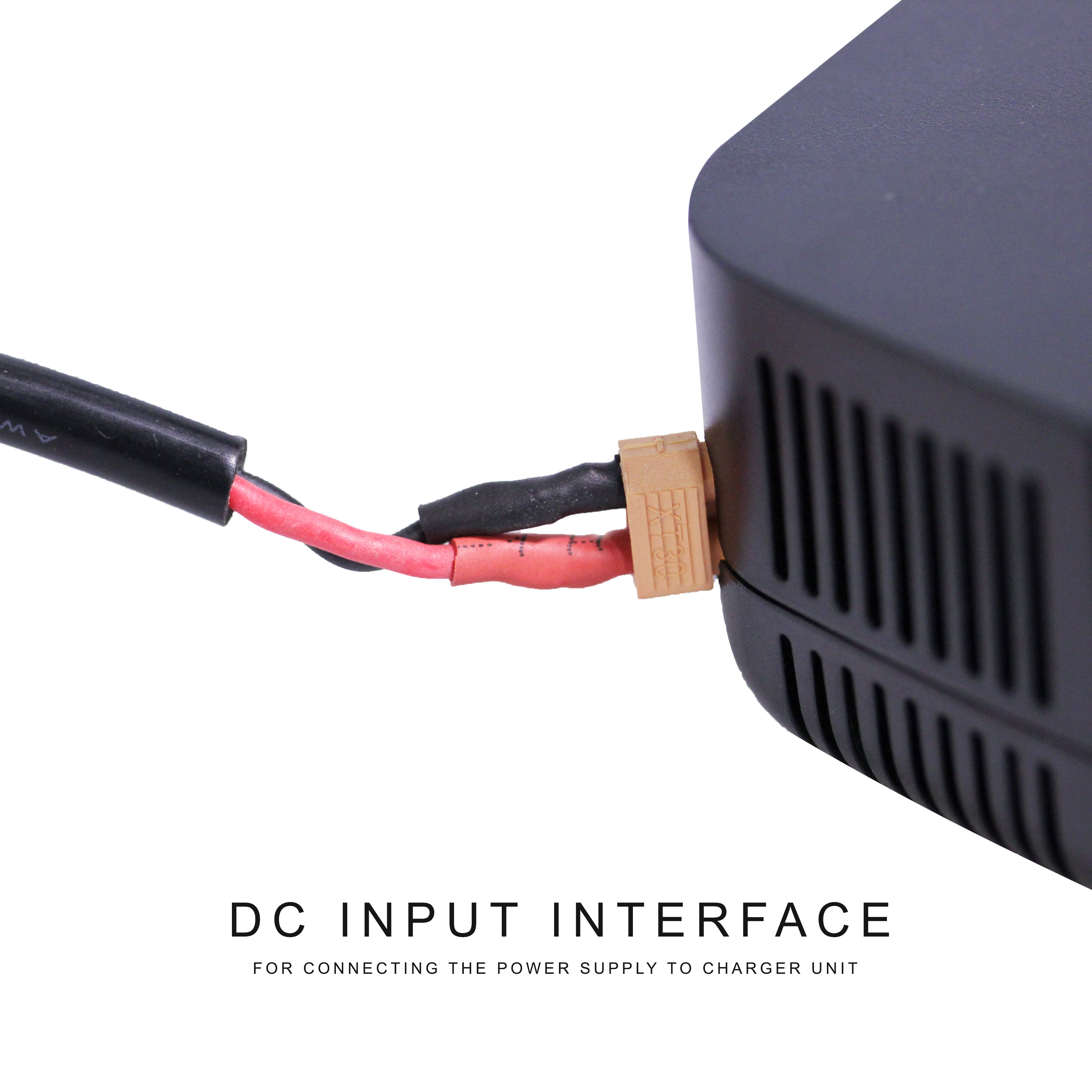

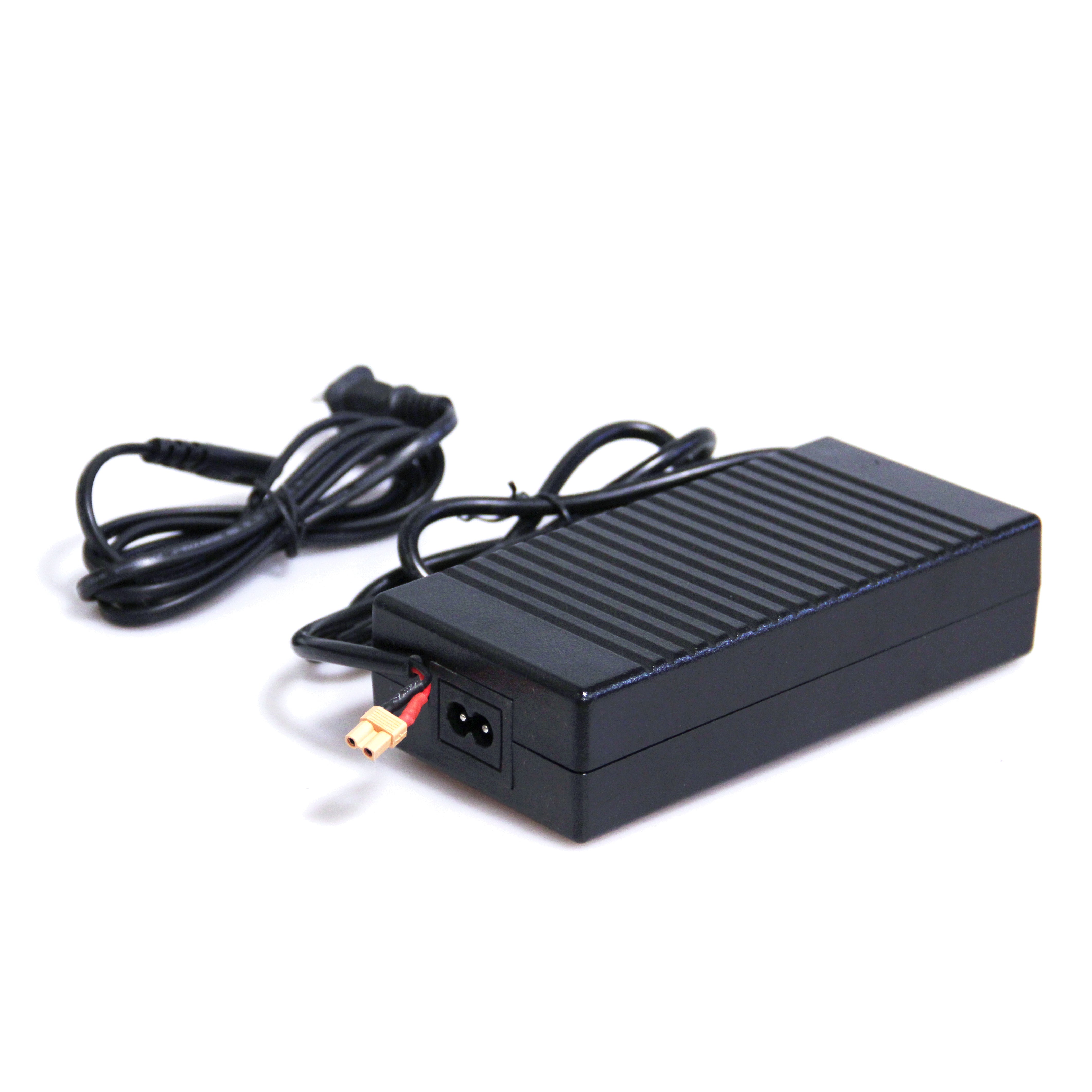

DC Power supply/adapter

AC input voltage: 100-240V
Item Size: 7.5 x 3 x 1.5"
Item Weight: 1.5 lbs
Box Size: 8.25 x 5.25 x 2.75"
Shipping weight: 1.8 lbs


Battery Specifications:
Battery Type: Lithium Polymer.
Compatible with: 100% Compatible with original Yuneec charger.
Capacity: 4S 14.8v 7500 mAh

Warranty

30-Day No Questions Asked Returns with USA-based Brand Warranty and Customer Service available. Please contact us if you have any questions or concerns!
